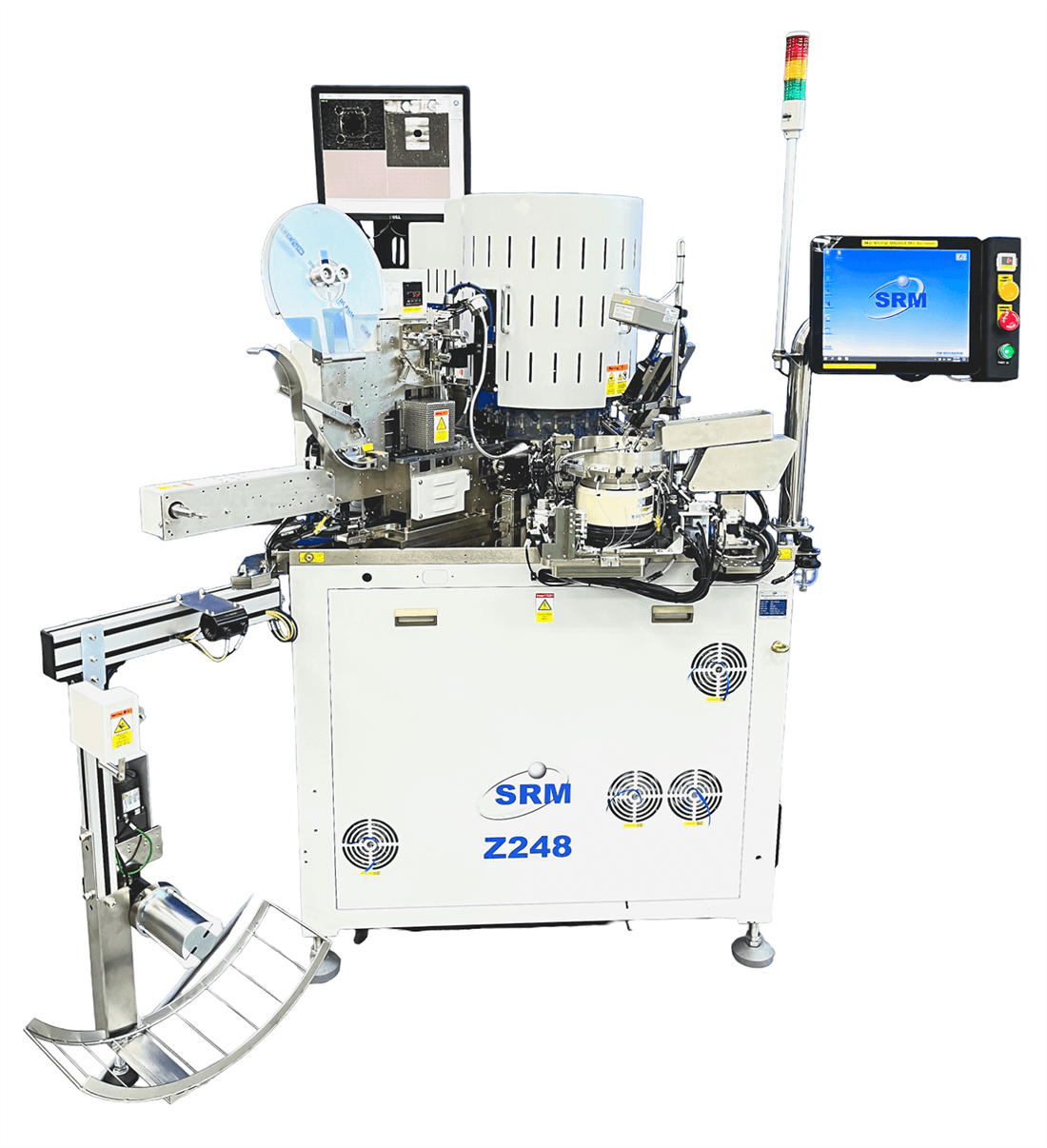

Bowl Input Test Handler
Rotary concept test handler is designed with high durable Direct-Drive motors for both Rotary and Z-axis. It can handle tiny IC packages with high speed with little vibration, force control and high precision.
Handler Capabilities
| Input: | Bowl Feeder |
|---|---|
| Output: | Tape & Reel with auto replace, Auto Reel Changer, Tubes |
| Vision Systems: | 2D, 3D, 5S, bottom pads, 6 sided, In-pocket. Micro-crack capable. Colour and mono camera. |
| No. of Test Site: | 2 to 8 sites *Maximum up to 16 sites |
| Test Force (selectable): | 0.3kg-1kg, 0.5kg-3kg, *0.3kg-5 kg, *Extraforce available up to 9kg upon request. Real time test force display. |
| Applicable Packages: | QFN/MLP, SOIC, SOT23, SC70, SOT89, SOT223, 5060, SOIC, SMA, SMB & etc |
| UPH: | Up to 60K |
| Hot Test option: | Up to (+/- 150 °C) |
| Test Socket & Contactors: | Kelvin Contact, Clamp Type, Flat Test (100 Ampere @ 1ms) |
| Laser mark option: | Yes |
| Handler-Tester Comm.: | GPIB, TTL, RS232 |
| Networking: | SECS GEM, TCPIP |
